Dust Collector

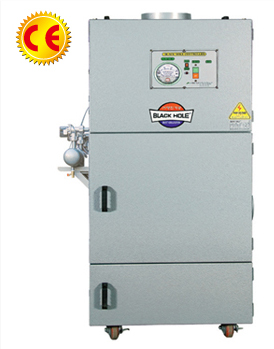

DX SERIES Dust Collector

Content

USE

  • - Works for cutting fabric
  • - Mixture
  • - Stone grinding
  • - Electric & Electronic
  • - panel
  • - molding
  • - Cutting for casting
  • - Buffing
  • - Metal cutting
  • - Baggage
  • - Crushing
  • - Powder supply etc

INSTALLATION

- Click on the picture for a larger picture. + More

FEATURES

MANOMETER Easy find filter change time with simple check of accumulated dust in filter.
FILTER Possible collect for any micro dust by enlarging filtering area with cartridge type of structure.
Easy change with united structure.
Continuos Operating Possible 24 Hr operating by automatic dust dropping from M/C.
Control Panel Adopting centralized and built in type with concentrated power S/W and differential pressure gauge makes easy recognition for operating and  protect damage, decrease trouble on moving.

TURBO BLOWER Possible zero vibration,less noise,more suction rate,minimized air resistance by superb precision press molds and electronic balancing works.
FILTER CLEANING Very effective micro dust dropping which attached air pulse type cartridge by the process of pulse timer operation makes compressed air spraying automatically through blow tube then drawing air surrounde.
Painting - Exclusive Design and color
- Very strong to heat and endurance

SPECIFICATION

Model Output
(kw)
Airflow
(cmm)
Pressure
(mmaq)
Filter Size
(㎜)
Dust
Drawer
(ℓ)
Weight
(㎏)
Size
(w×l)
Qty Area
(㎡)
a b c ød e f øg h
DX-101 0.75 12 230 200×500l 3 8.1 600 630 1,420 123 300 410 148 90 16 165
DX-202 1.5 25 4 10.8 650 680 1,520 148 325 440 198 90 45 220
DX-303 2.2 40 7 18.9 720 750 1,570 198 360 540 248 90 65 250
DX-404 3.7 50 8 21.6 750 780 1,620 248 375 540 298 90 80 300
DX-505 3.7 60 9 24.3 750 780 1,620 248 375 540 298 90 80 380
DX-707 5.5 80 200×1000l 9 48.6 850 880 2,230 298 425 650 348 90 100 490
DX-1010 7.5 100 12 64.8 1,220 1,030 2,440 348 500 700 398 100 130 580
DX-1500 5.5×2 150 16 86.4 1,500 1,050 2,440 398 510 700 448 100 130 720
DX-2000 7.5×2 200 20 108 1,700 1,070 2,440 448 520 725 498 100 170 940
DX-3000 11×2 300 24 129.6 2,000 1,070 2,626 548 520 800 598 100 170 1,450

STANDARD DIMENSION




INSTALLATION
